Tuesday, January 18, 2011

Flood photos

The floodwaters are well documented in the aerial shots on Nearmap .

Here are some other photos from the owners at the height of the flood and soon after....

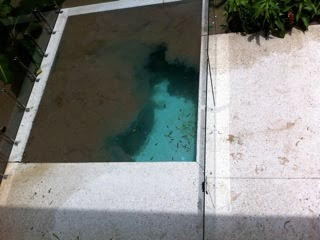

Brisbane River water slowly clouding up clean pool
View from terrace out past pool to river

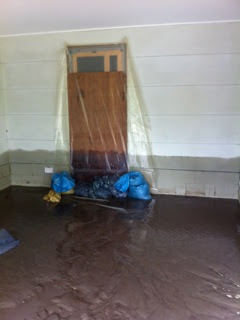

Door to lower hallway, protected with ply, plastic and sandbags

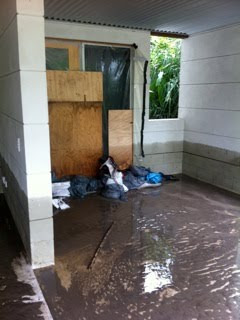

Protection to lower bedroom door and window
Lower bedroom from hallway


Many have asked how the house survived so well in the floods. The lower floor was always designed with the assumption that flooding would occur at some point. Here are some of the design considerations which assisted:



  • There was no built-in furniture downstairs (most vulnerable to flood damage).

  • Most walls are of rendered blockwork with cement render and limewash finish which is extremely durable and when cleaned down as the waters subsided was virtually unmarked.

  • The small amount of lightweight walls (only 2 in this level) had recycled hardwood framing (very dimensionally stable) and was sheeted in Powerscape which is a highly water resistant plasterboard alternative (and very high recycled content). Paint finish to these walls was water-based acrylic which cleaned down easily – only minor damage was where water got under the enclosed stair and its pressure caused one small corner of the paintwork to lift off.

  • The internal doors were veneered solid core doors and on one of the doors, the ply started to delaminate, though this damage is far less than would have occurred if the doors had been typical hollow core construction with a cardboard core and mdf outer.

  • The stair was solid timber so would have swelled with moisture but has dried out now.

  • Floors are all of polished concrete so very easy to clean

Saturday, January 15, 2011

Floods and Mud

High water mark on blockwork
Brisbane has just gone through the worst flood since 1974 and the ecohouse being on the river, had front row seats. Fortunately it survived the flood well, despite the waters coming inside half a metre up the walls on the river level. The owners cleaned as the waters subsided and apart from a damp base and slightly swollen timber doors, it looks relatively unscathed.Necessary safety gear
Knowing that the future was likely to hold many extreme weather events and sea level rising, we selected materials for the ground floor which could survive inundatation. I was pleased to see that they did surprisingly well. The Powerscape wall sheeting was completely intact. Only the paint in two places seemed bubbled (water in understair storage coming from behind the paint) and some taping to a joint. Wall cavities may be a different matter, if water got into wiring but cosmetically, the river level spaces and terrace looked good. The limewash finish looks like it survived the grime and hose down relatively unblemished.Paint lifted from pressure behind in store room.
The world's best ecopool changed colour slowly during the floods from clear green through cloudy blending to Brisbane River brown. Lots of wildlife appeared as the waters rose: two snakes, many spiders moved indoors and the bush turkey chicks have become familiar with the living room. Unfortunately as the house has no power, the rainwater and treated greywater cannot be accessed, despite the solar panels (a battery bank needs to be added) but the owners have clean townwater and gas for cooking.

For more flood photos, see my picassa photo sitePlants are growing crazily with the huge rain and new desposits of silt.
